Takahashi TOA 130 and 150

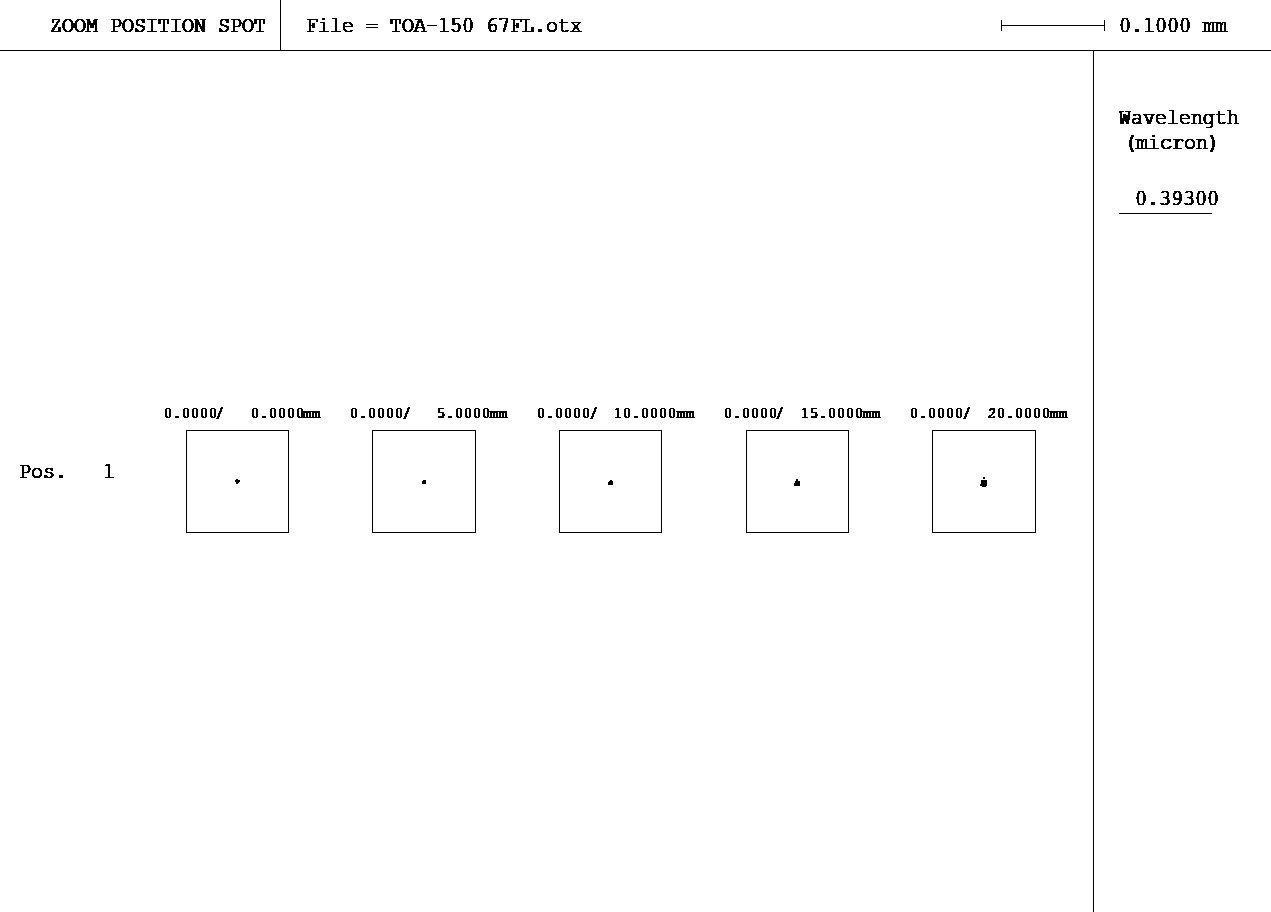

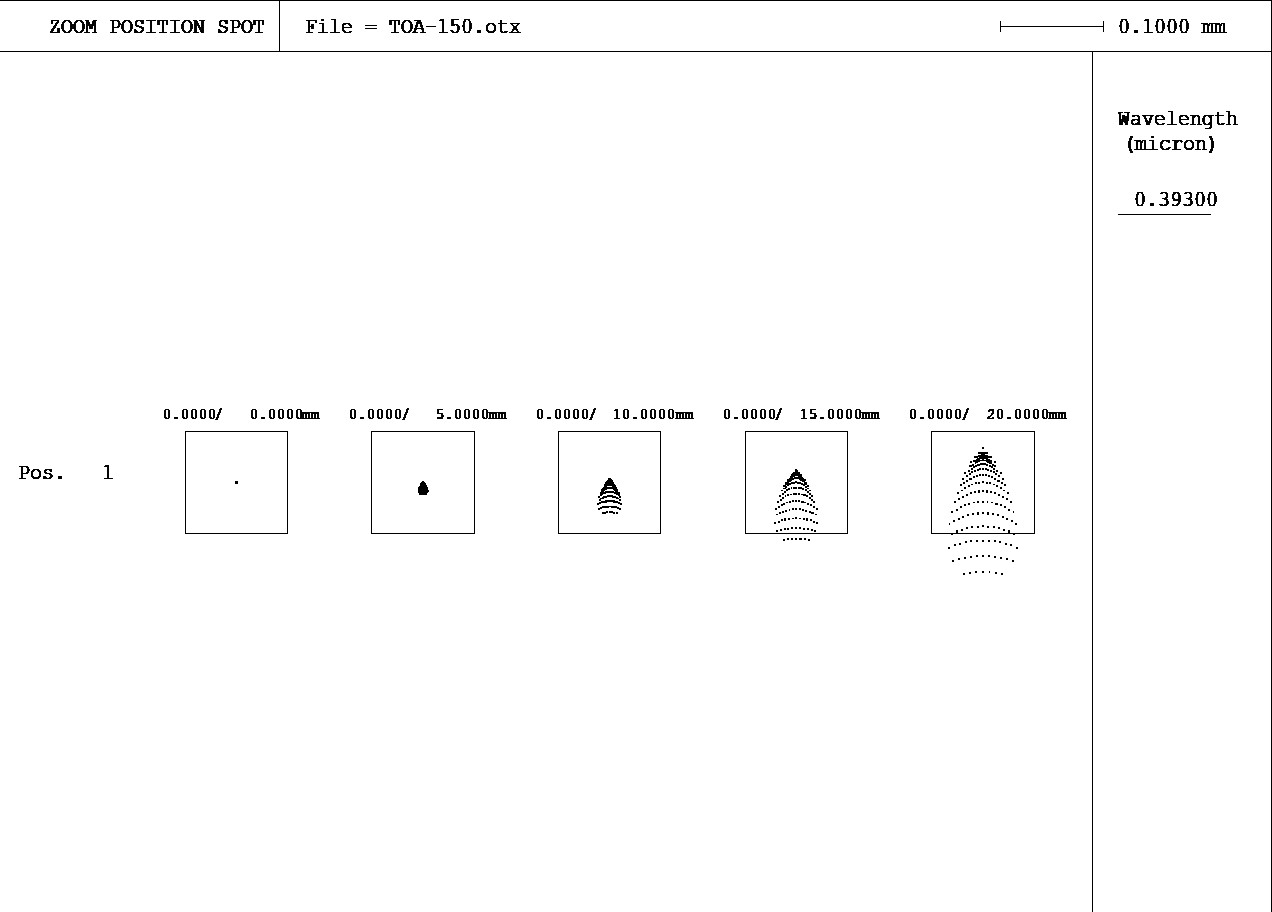

Spot
diagrams of Takahashi TOA 150 in near-UV (393 nm) -
Source : Takahashi

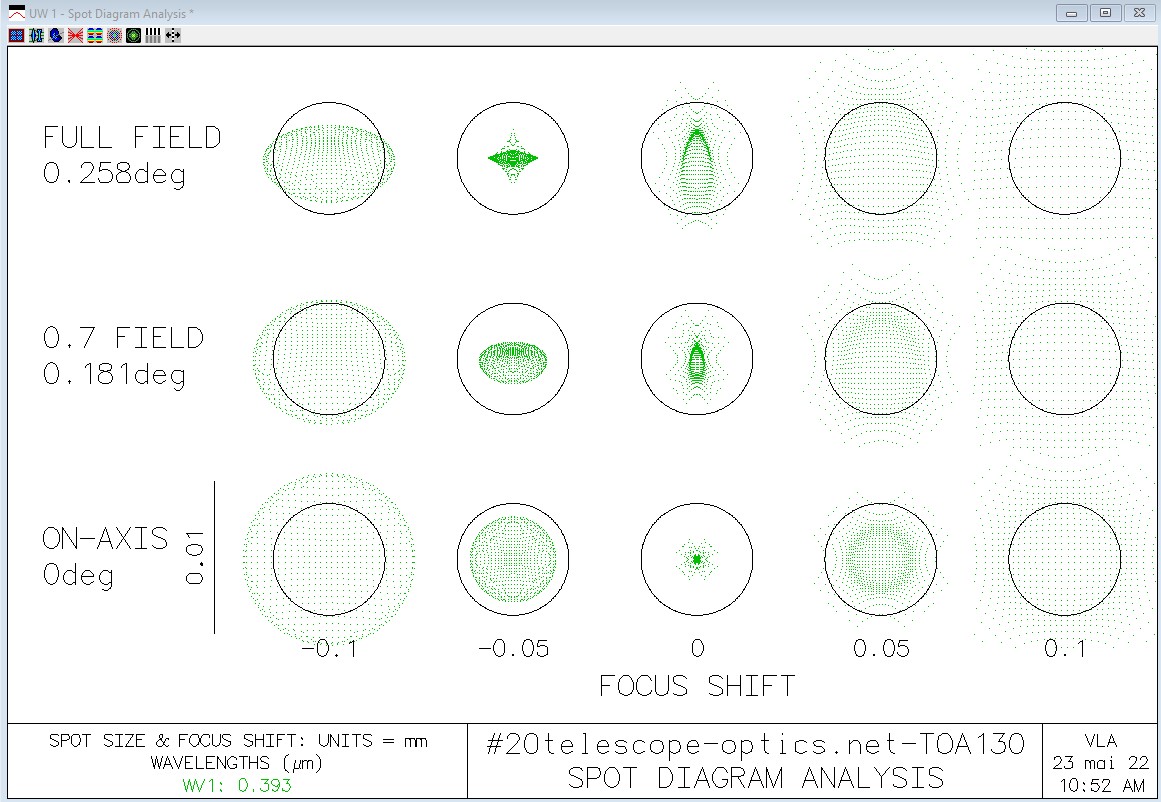

Spot diagrams of Takahashi TOA 130 in near-UV (393 nm)

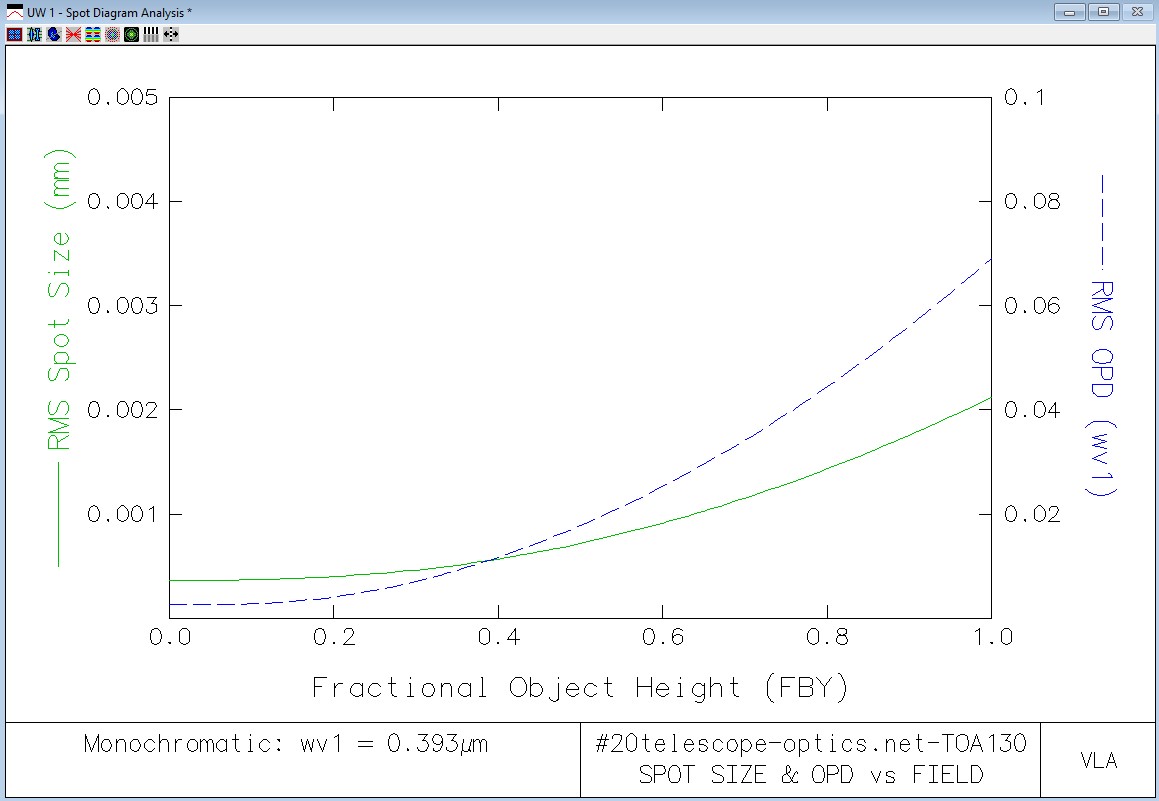

According to the approximate OSLO
model, the Takahashi TOA 130 is diffraction limited at 393 nm up to
0.258° (= 4.5 mm) away from the optical axis. This is enough
to cover the solar disk:

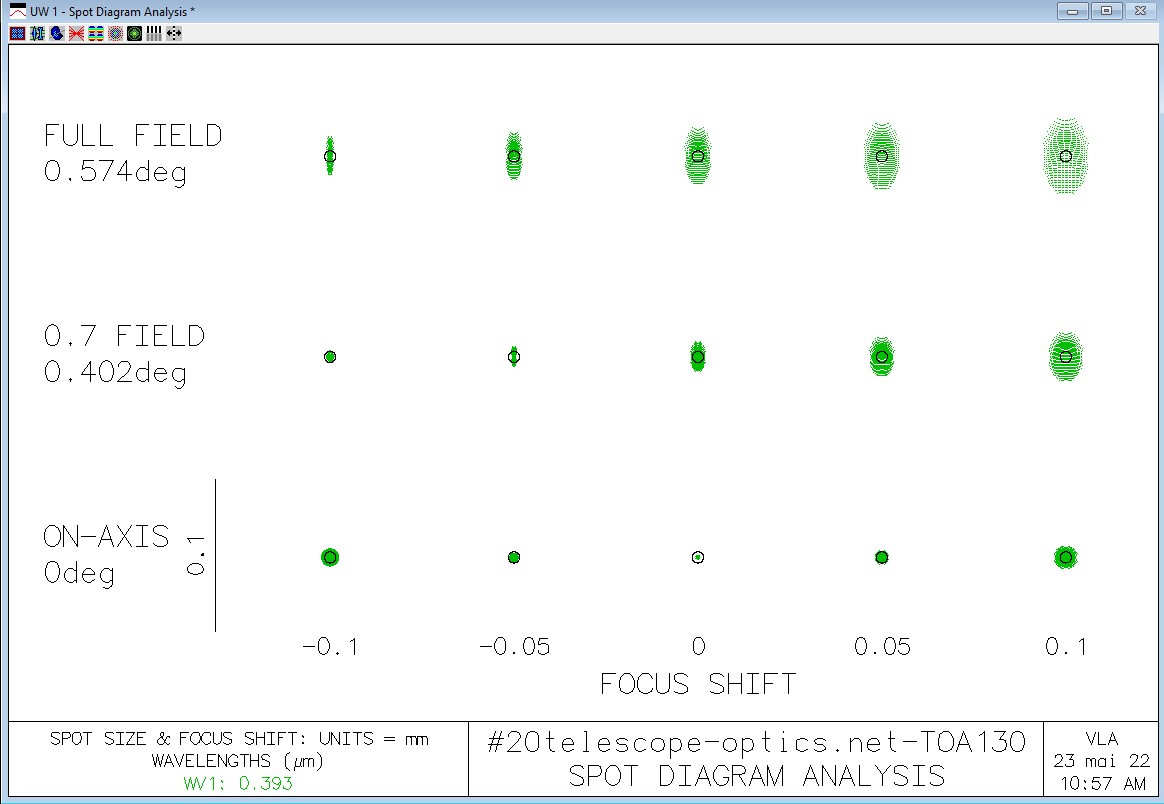

Spot
diagram
up to 10 mm from optial axis at 393 nm:

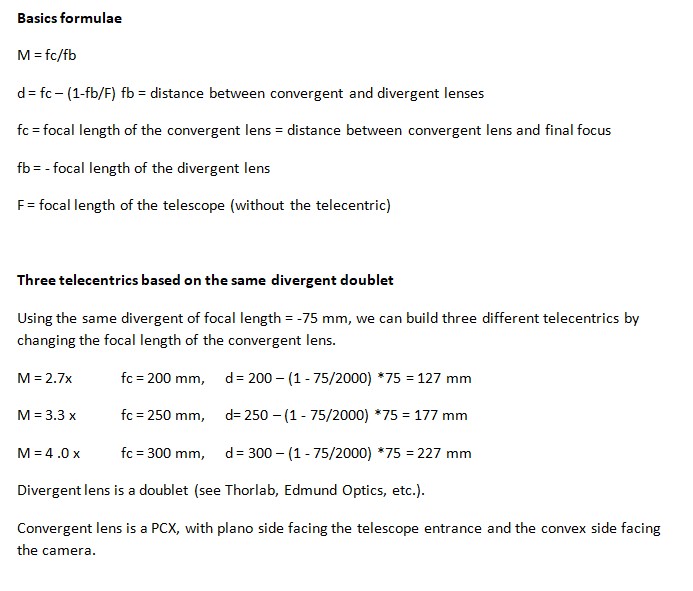

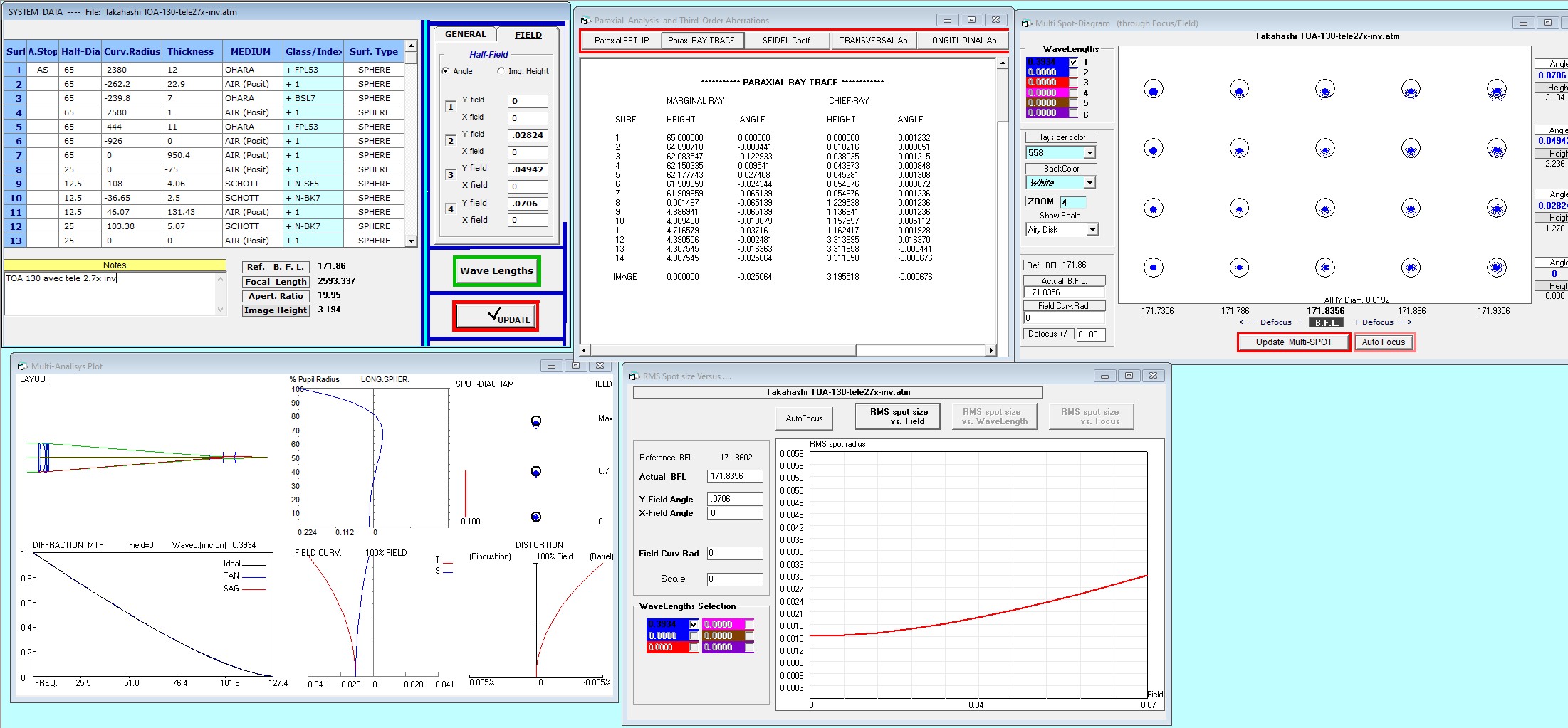

TOA 130 f/7 with 2.7 telecentric
IMPORTANT NOTE FOR Ca K IMAGING : the
PCX should be with the plano side toward the camera
